Machine Specifications
| Model | BNE-65ATC | |||
|---|---|---|---|---|
| Distance between spindle end faces | 740.5mm | |||
| Standard machining diameter（SP1・SP2） | 65mm | |||
| Number of spindles | 2 | |||
| Max. spindle speed（SP1・SP2） | 5,000min-1 | |||
| Collet chuck type | SP1 | H-S26, DIN177E, Hainbuch65 | ||
| SP2 | H-S26, H-S22, DIN177E, DIN177E collet, Hainbuch65 | |||
| Power chuck type | SP1 | --- | ||
| SP2 | 6” hollow chuck | |||
| Number of tool slides | 2 | |||
| Type of the tool slide | TR1 | 10St | ||
| TR2 | 12St | |||
| Turning tool | □20mm | |||
| Sleeve | ø25mm | |||
| Revolving tool capacity | TR1 | Max.10 | ||
| TR2 | Max.12 | |||
| Rotational speed of revolving tools（TR 1・TR 2） | 6,000min-1 | |||
| Rapid feed rate | X1, Z1, X3, Z3 axis | 20m/min | ||
| X2,Z2 axis | 18m/min | |||
| Y1,Y2 axis | 12m/min | |||
| Motor for spindle | SP1 | 18.5/ 15kW (30min/cont.) | ||
| SP2 | 11/ 7.5kW (15min/cont.) | |||
| Motor for revolving tools（TR 1・TR 2） | 4.0kW | |||
| Rated power consumption | 46.9kVA | |||
| Machine Height | 2,177mm | |||
| Machine weight | 9,200 kg | |||

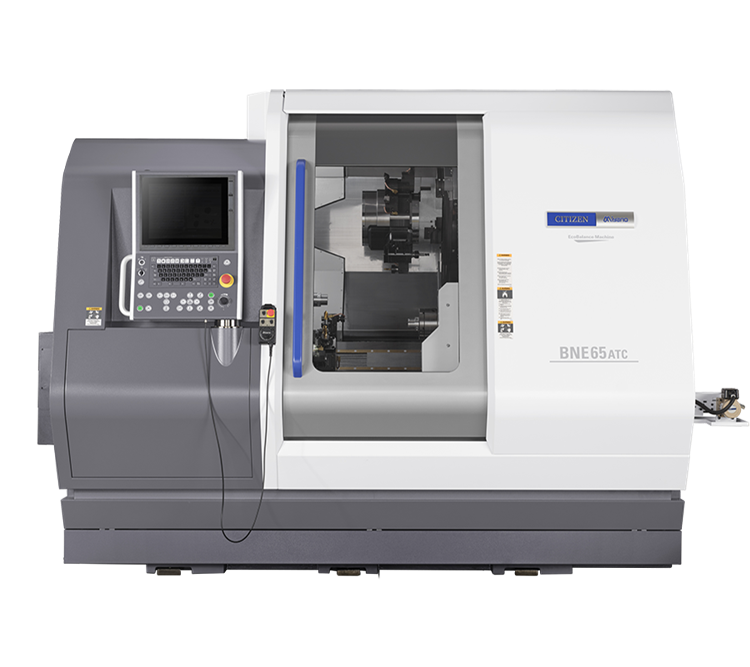

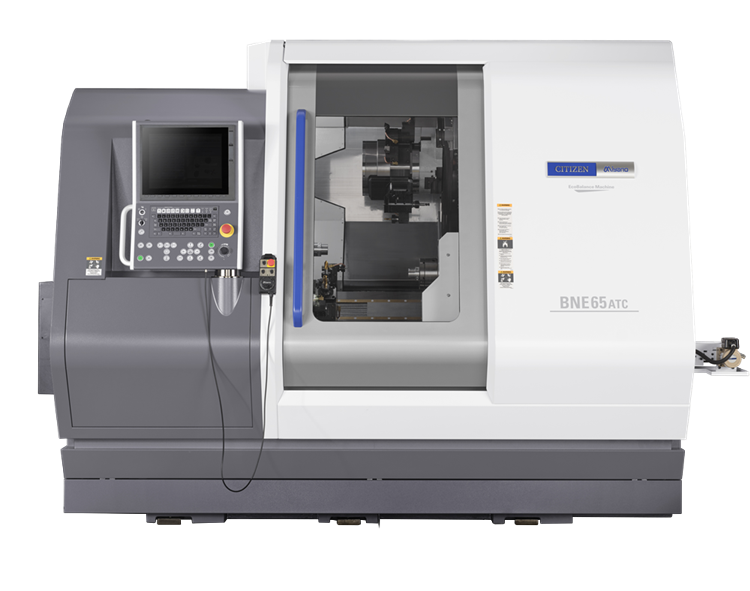

BNE-65ATC
- Distance between spindle end faces
- 740.5mm
- Standard machining diameter（SP1・SP2）
- 65mm
- Number of spindles
- 2
- Max. spindle speed（SP1・SP2）
- 5,000min-1
- Collet chuck type（SP1）
- H-S26, DIN177E, Hainbuch65
- Collet chuck type（SP2）
- H-S26, H-S22, DIN177E, DIN177E collet, Hainbuch65
- Power chuck type（SP1）
- ---
- Power chuck type（SP2）
- 6” hollow chuck
- Number of tool slides
- 2
- Type of the tool slide（TR1）
- 10St
- Type of the tool slide（TR2）
- 12St
- Turning tool
- □20mm
- Sleeve
- ø25mm
- Revolving tool capacity（TR1）
- Max.10
- Revolving tool capacity（TR2）
- Max.12
- Rotational speed of revolving tools（TR1・TR2）
- 6,000min-1
- Rapid feed rate [X1, Z1, X3, Z3 axis]
- 20m/min
- Rapid feed rate [X2,Z2 axis]
- 18m/min
- Rapid feed rate [Y1,Y2 axis]
- 12m/min
- Motor for spindle（SP1）
- 18.5/ 15kW (30min/cont.)
- Motor for spindle（SP2）
- 11/ 7.5kW (15min/cont.)
- Motor for revolving tools（TR1・TR2）
- 4.0kW
- Rated power consumption
- 46.9kVA
- Machine Height
- 2,177mm
- Machine weight
- 9,200 kg
