Machine Specifications
| Item | A20-4F | ||
|---|---|---|---|
| Tooling extension specifications (option) | Standard tooling specifications | ||
| Max. machining diameter | φ 20mm | ||
| Max. machining length | φ 20 mm specifications. | 200 mm per chucking (Z1-axis stroke 205 mm) | |
| φ 25 mm specifications | 188 mm per chucking (Z1-axis stroke 193 mm) | ||
| Max. front drilling diameter | φ 10mm | ||
| Max. front tapping diameter | M8 (cutting tap) | ||
| Spindle speed | Max.10,000min-1(Pull type chuck spindle max. 8,000 min-1) | ||
| Max. drilling diameter by rotary tool on gang tool post | φ 7mm | ||
| Max. tapping diameter by rotary tool on gang tool post | M6 (cutting tap) | ||
| Gang tool spindle speed | T07, T08 Max.7,700min-1 | 3-tool specification (option) Max.8,000min-1 |
|
| T09 ～ T11 Max.6,000min-1 | 4-tool specification Max.6,000min-1 | ||
| Max. chucking diameter of the back spindle | φ 20mm | ||
| Back spindle maximum workpiece length | 100 mm (standard product separator) | ||
| Max. drilling diameter in back machining | φ 8mm | ||
| Max. tapping diameter in back machining | M6 (cutting tap) | ||
| Back spindle speed | max.8,000min-1 | ||
| Number of tools | 22（Max.32) | 21(Max.25) | |
| Tool size | Turning tool | □12 ×120 mm、□13 ×120 mm | |
| Rapid feed rate | X1 axis | 24 m/min | |
| X2 axis | 32m/min | ||
| Y1 axis | 32m/min | ||
| Z1 axis | 32m/min | ||
| Z2 axis | 32m/min | ||
| Motor | For front spindle | 2.2/ 3.7 kW AC spindle motor, built-in type | |
| For back spindle | 1.1/ 1.5 kW AC spindle motor, built-in type | ||
| For rotary tool on the gang tool post | 1.0 kW AC servo motor | ||
| For coolant | 0.4 kW | ||
| Rated power consumption | 9.1 kVA | ||
| Load operation average power consumption | 4.5 kVA | ||
| Center height | 1,050 mm | ||
| Mass | 2,200kg | ||

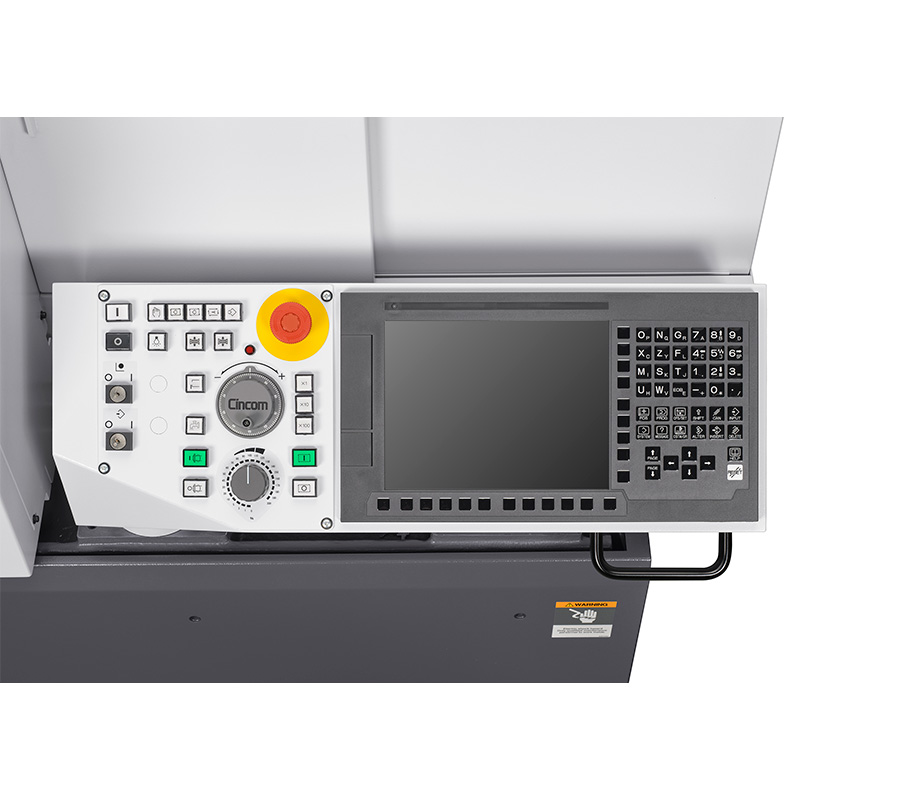

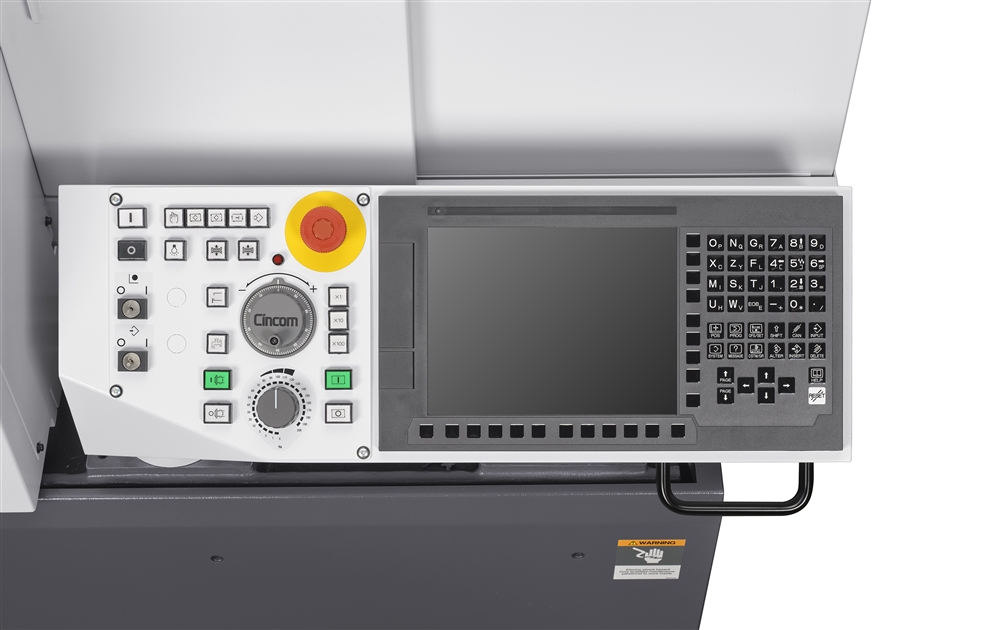

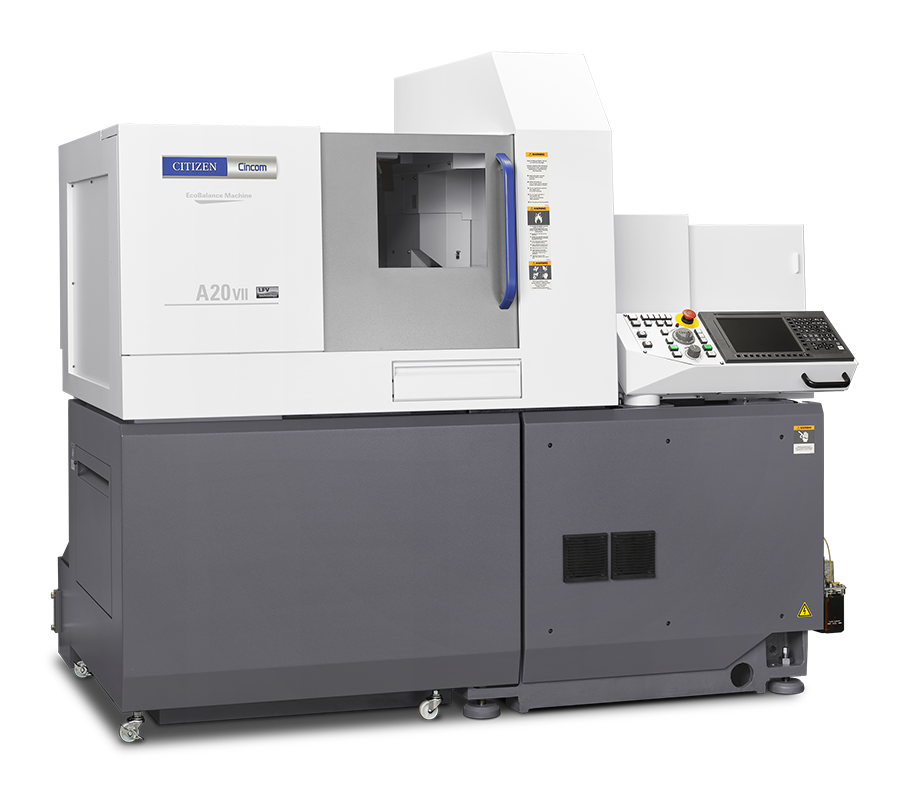

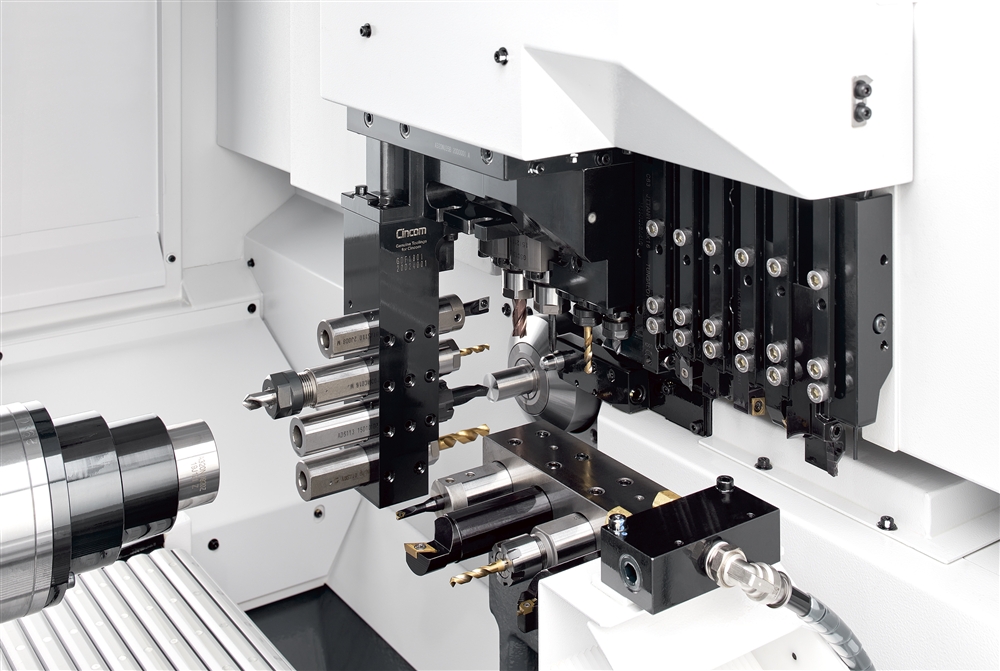

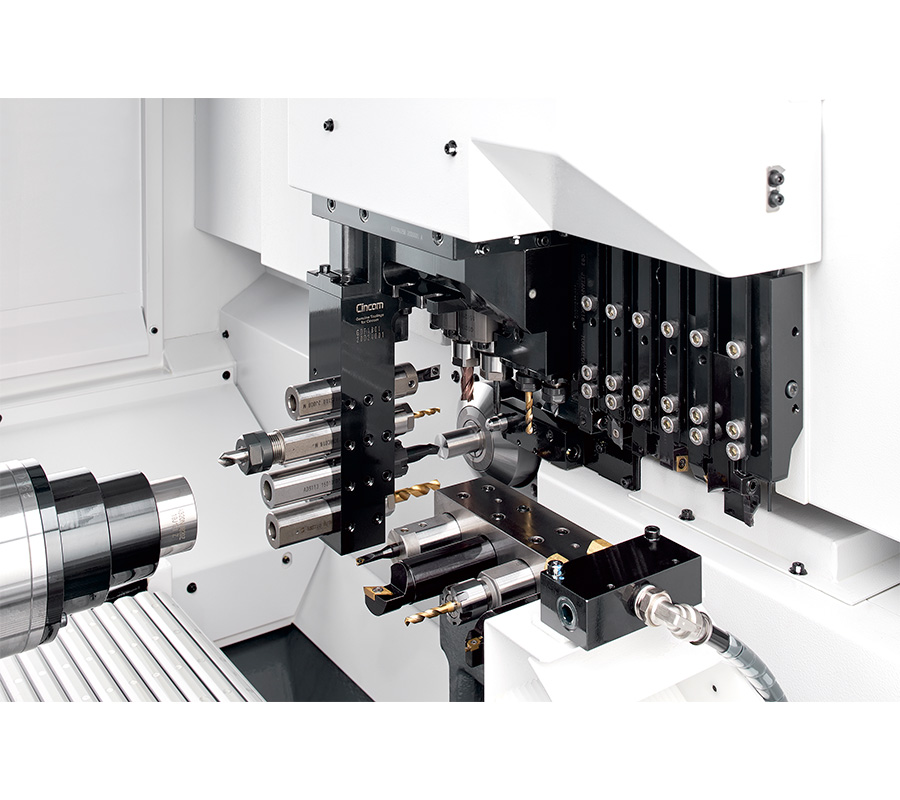

A20VII Tooling extension specifications (option)
- Max. machining diameter
- φ 20mm
- Max. machining length【φ20 mm specifications.】
- 200 mm per chucking (Z1-axis stroke 205 mm)
- Max. machining length【φ25 mm specifications】
- 188 mm per chucking (Z1-axis stroke 193 mm)
- Max. front drilling diameter
- φ 10mm
- Max. front tapping diameter
- M8 (cutting tap)
- Spindle speed
- Max.10,000min-1(Pull type chuck spindle max. 8,000 min-1)
- Maximum drilling diameter for rotary tool
- φ7mm
- Maximum tapping diameter for rotary tool
- M6 (cutting tap)
- Max. drilling diameter by rotary tool on gang tool post
- φ 7mm
- Max. tapping diameter by rotary tool on gang tool post
- M6 (cutting tap)
- Gang tool spindle speed
- T07, T08 Max.7,700min-1
- Gang tool spindle speed
- T09 ～ T11 Max.6,000min-1
- Max. chucking diameter of the back spindle
- φ 20mm
- Back spindle maximum workpiece length
- 100 mm (standard product separator)
- Max. drilling diameter in back machining
- φ 8mm
- Max. tapping diameter in back machining
- M6 (cutting tap)
- Back spindle speed
- max.8,000min-1
- Number of tools
- 22（Max.32)
- Tool size[Turning tool]
- □12 ×120 mm、□13 ×120 mm
- Rapid feed rate [X1 axis]
- 24 m/min
- Rapid feed rate [X2 axis]
- 32m/min
- Rapid feed rate [Y1 axis]
- 32m/min
- Rapid feed rate [Z1 axis]
- 32m/min
- Rapid feed rate [Z2 axis]
- 32m/min
- Motors [For front spindle]
- 2.2/ 3.7 kW AC spindle motor, built-in type
- Motors [For back spindle]
- 1.1/ 1.5 kW AC spindle motor, built-in type
- Motors [For rotary tool on the gang tool post]
- 1.0 kW AC servo motor
- Motors [For coolan]
- 0.4kW
- Rated power consumption
- 9.1 kVA
- Load operation average power consumption
- 4.5 kVA
- Center height
- 1,050 mm
- Mass
- 2,200kg
A20VII Standard tooling specifications
- Max. machining diameter
- φ 20mm
- Max. machining length【φ20 mm specifications.】
- 200 mm per chucking (Z1-axis stroke 205 mm)
- Max. machining length【φ25 mm specifications】
- 188 mm per chucking (Z1-axis stroke 193 mm)
- Max. front drilling diameter
- φ 10mm
- Max. front tapping diameter
- M8 (cutting tap)
- Spindle speed
- Max.10,000min-1(Pull type chuck spindle max. 8,000 min-1)
- Maximum drilling diameter for rotary tool
- φ7mm
- Maximum tapping diameter for rotary tool
- M6 (cutting tap)
- Max. drilling diameter by rotary tool on gang tool post
- φ 7mm
- Max. tapping diameter by rotary tool on gang tool post
- M6 (cutting tap)
- Gang tool spindle speed
- 3-tool specification (option) Max.8,000min-1
- Gang tool spindle speed
- 4-tool specification Max.6,000min-1
- Max. chucking diameter of the back spindle
- φ 20mm
- Back spindle maximum workpiece length
- 100 mm (standard product separator)
- Max. drilling diameter in back machining
- φ 8mm
- Max. tapping diameter in back machining
- M6 (cutting tap)
- Back spindle speed
- max.8,000min-1
- Number of tools
- 21(Max.25)
- Tool size[Turning tool]
- □12 ×120 mm、□13 ×120 mm
- Rapid feed rate [X1 axis]
- 24 m/min
- Rapid feed rate [X2 axis]
- 32m/min
- Rapid feed rate [Y1 axis]
- 32m/min
- Rapid feed rate [Z1 axis]
- 32m/min
- Rapid feed rate [Z2 axis]
- 32m/min
- Motors [For front spindle]
- 2.2/ 3.7 kW AC spindle motor, built-in type
- Motors [For back spindle]
- 1.1/ 1.5 kW AC spindle motor, built-in type
- Motors [For rotary tool on the gang tool post]
- 1.0 kW AC servo motor
- Motors [For coolant]
- 0.4kW
- Rated power consumption
- 9.1 kVA
- Load operation average power consumption
- 4.5 kVA
- Center height
- 1,050 mm
- Mass
- 2,200kg
