ABX65/80SYY

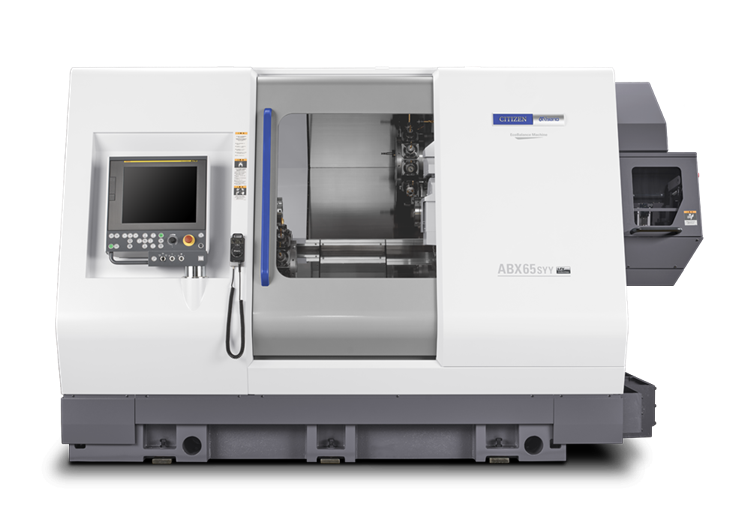

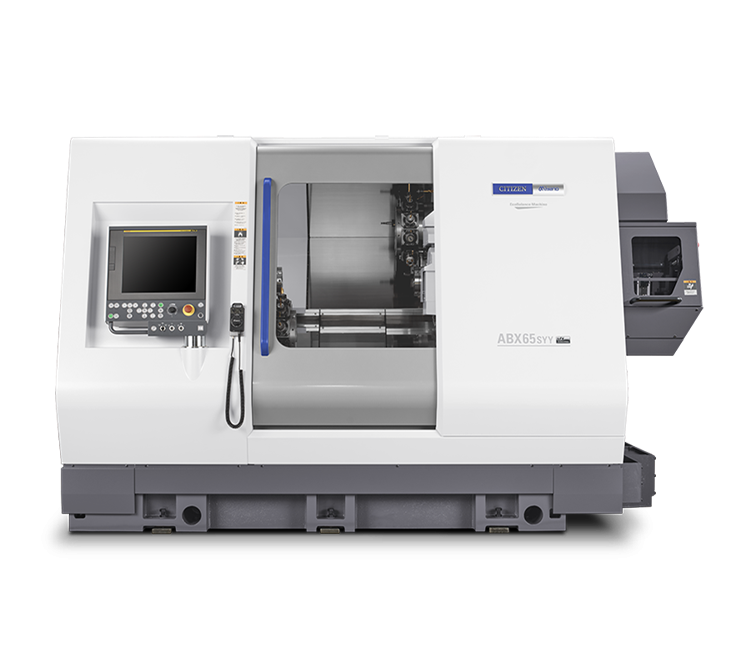

Fixed Headstock Type CNC Automatic Lathe

Miyano ABX65/80SYY

Eco Balance Machine LFV tecnology

Revamped ABX Series
φ80 mm and φ65 mm

High-rigidity slideways and spindle motors with increased power greatly improve the basic performance.
These models are certified as EcoBalance Machines that feature Citizen’s unique environmental technology including visualization of power consumption and reduction of air consumption.

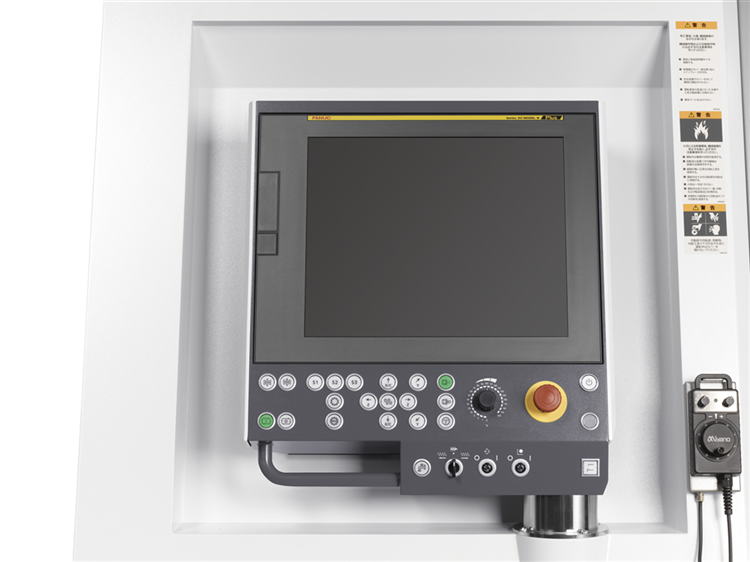

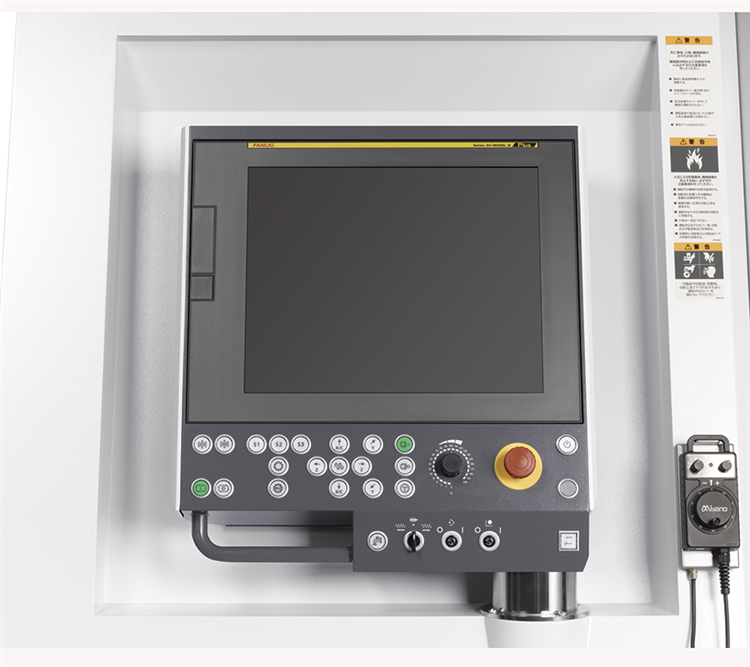

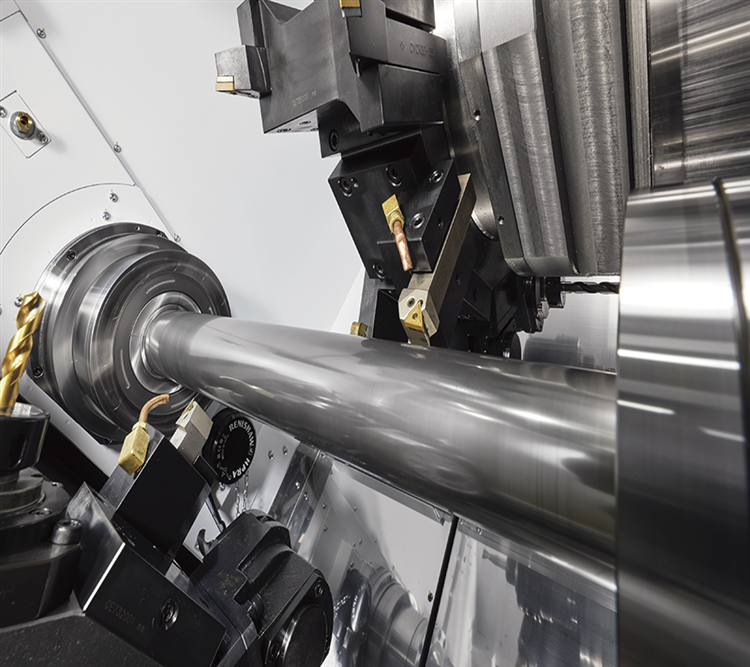

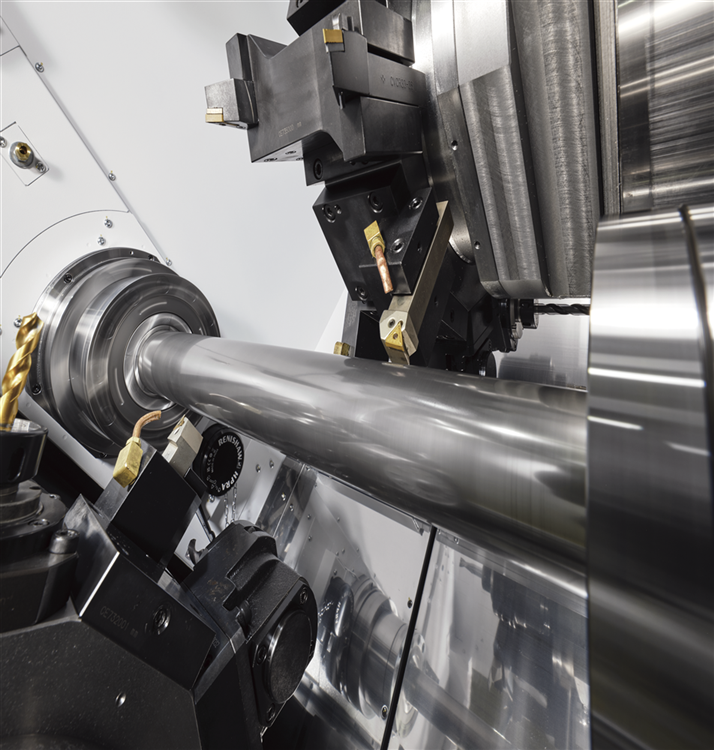

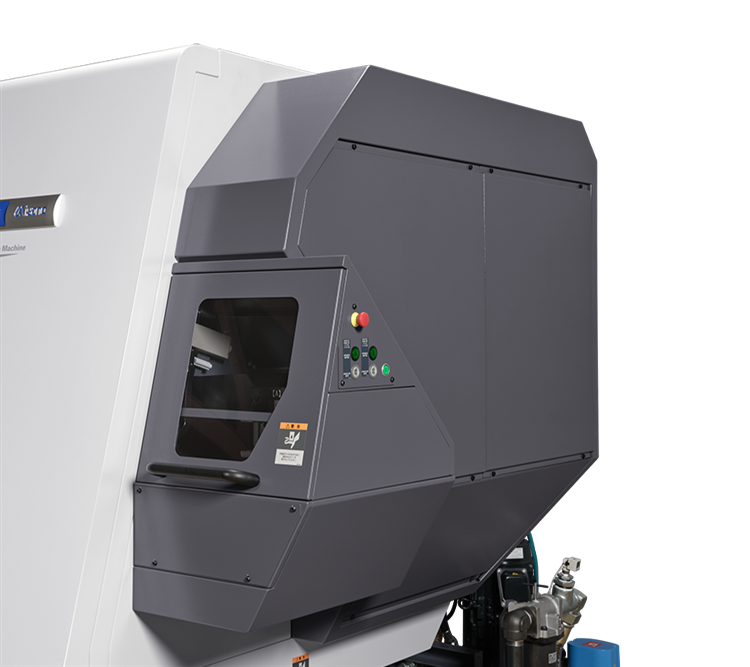

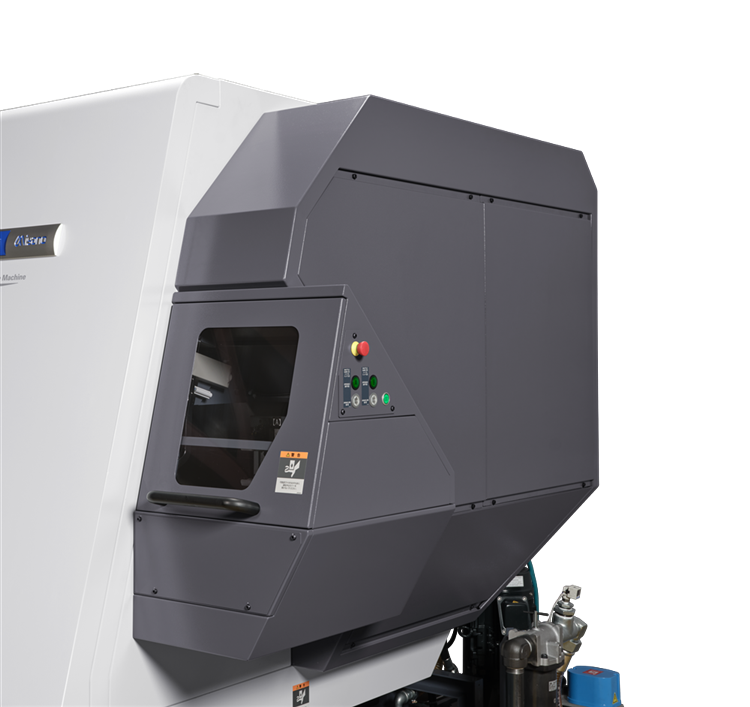

  • Constructed with two spindles and two turrets, the machine features the Y-axis on the upper and lower turrets, allowing simultaneous machining in conjunction with the front and back spindles.
  • It also excels in pinch turning of long workpieces utilizing its long strokes, achieving efficiency through simultaneous machining using two turrets.
Catalog Download

Machine Specifications

Product List
Cincom
[Sliding Headstock Type]
A20
B12/16E
L12 VII
L12 X
L20
L32
D25
M16
M32
R01/04
Miyano
[Bar Work]
BNC42
BNA42CY
BNA42SY
BNA42MSY
BND51
BNA42DHY
BNA42GTY
ANX42SYY
BNJ42/51
BNJ51SY
BNE42/51
BNE51MSY
BNE51/65MYY
ABX60/80SYY
ABX65/80THY
[Turning Machine]
LX06/08E
LX08C
LZ01
[High Precision Turning Machines]
RL01
GN3200
GN4200
GN3200W
MC20
[Multi Station Machining Cell]
MC20 III
MC20 IV
Items ABX-65SYY3 ABX-80SYY3
Maximum Machining Diameter of Bar Work SP1/SP2 ø65mm / ø65mm ø80mm / ø80mm
Power Chuck SP1/SP2 6” POWER CHUCK
Distance between spindle end faces 1031 mm
Motor for spindle SP1/SP2 18.5/ 15 kW (30min./ cont.)
Spindle speed SP1 5,000 min-1 4,000 min-1
SP2 5,000 min-1
Type of tool post 12st
Dimensions of tools used □20 mm
Dimensions of tool mounting holes ø25 mm
Slide Stroke X1, X2 axis 190mm
Z1 axis 550mm
Z2 axis 721mm
Y1、Y2 axis 80（±40）mm
ZS axis 756 mm
Rapid Traverse Rate X1, X2 axis 20m/min
Z1/Z2 axis 30/20m/min
Y1, Y2 axis 12m/min
Zs axis 30m/min
Revolving tool capacity Max.12/12
Machine height 2,210 mm
Required floor space (length x width) 3,260×2,200 mm
Machine Weight 10,700 kg
ABX-51SYY2
Machining Capacity and Chuck System
Maximum Machining Diameter of Bar Work [SP1/SP2]
51mm Dia./51mm Dia.
Collet Chuck [SP1/SP2]
Stationary
Power Chuck [SP1/SP2]
6"/6" hydraulic drive
Standard Turning Length
125mm
Spindle
Spindle Nose [SP1/SP2]
A2-6/A2-6
Spindle motor(30min./Cont.) [SP1]
15/11kW
Spindle motor(30min./Cont.) [SP2]
7.5/5.5kW
Spindle Speed Range [SP1]
50 - 5,000min-1
Spindle Speed Range [SP2]
50 - 5,000min-1
Turrets(Upper L/R Turrets & Lower Turret)
Type of Turret
12St.Turret
Shank Height of Square Turning Tool
20mm Sq.
Diameter of Drill Shank
40mm Dia. , 20mm Dia. , 25mm Dia.
Slide Stroke [X1, X2 axis]
190mm
Slide Stroke [Z1/Z2 axis]
550mm/721mm
Slide Stroke [Y1, Y2 axis]
±40mm
Slide Stroke [Zs axis]
756mm
Rapid Traverse Rate [X1, X2 axis]
16m/min
Rapid Traverse Rate [Z1/Z2 axis]
30/20m/min
Rapid Traverse Rate [Y1, Y2 axis]
12m/min
Rapid Traverse Rate [Zs axis]
30m/min
Revolving Tools(Option)
Maximum Number of Revolving Tools
24
Rotation speed of revolving tools
60 - 6,000min-1
Rivolving Tool Motor
AC Servo 4.5kW
Machine Dimensions
Machine Height
2,222mm
Floor Space
3,290×2,204mm
Machine Weight
10,750kg
ABX-64SYY2
Machining Capacity and Chuck System
Maximum Machining Diameter of Bar Work [SP1/SP2]
64/51mm Dia.
Collet Chuck [SP1/SP2]
Stationary
Power Chuck [SP1/SP2]
6"/6" hydraulic drive
Standard Turning Length
125mm
Spindle
Spindle Nose [SP1/SP2]
A2-8/A2-6
Spindle motor(30min./Cont.) [SP1]
15/11kW
Spindle motor(30min./Cont.) [SP2]
7.5/5.5kW
Spindle Speed Range [SP1]
40 - 4,000min-1
Spindle Speed Range [SP2]
50 - 5,000min-1
Turrets(Upper L/R Turrets & Lower Turret)
Type of Turret
12St.Turret
Shank Height of Square Turning Tool
20mm Sq.
Diameter of Drill Shank
40mm Dia. , 20mm Dia. , 25mm Dia.
Slide Stroke [X1, X2 axis]
190mm
Slide Stroke [Z1/Z2 axis]
550mm/721mm
Slide Stroke [Y1, Y2 axis]
±40mm
Slide Stroke [Zs axis]
756mm
Rapid Traverse Rate [X1, X2 axis]
16m/min
Rapid Traverse Rate [Z1/Z2 axis]
30/20m/min
Rapid Traverse Rate [Y1, Y2 axis]
12m/min
Rapid Traverse Rate [Zs axis]
30m/min
Revolving Tools(Option)
Maximum Number of Revolving Tools
24
Rotation speed of revolving tools
60 - 6,000min-1
Rivolving Tool Motor
AC Servo 4.5kW
Machine Dimensions
Machine Height
2,222mm
Floor Space
3,290×2,204mm
Machine Weight
10,900kg
