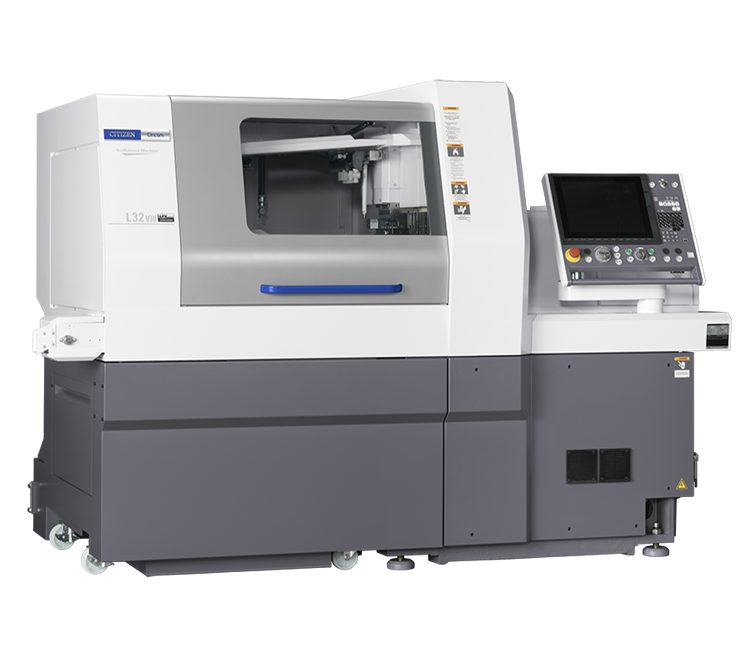

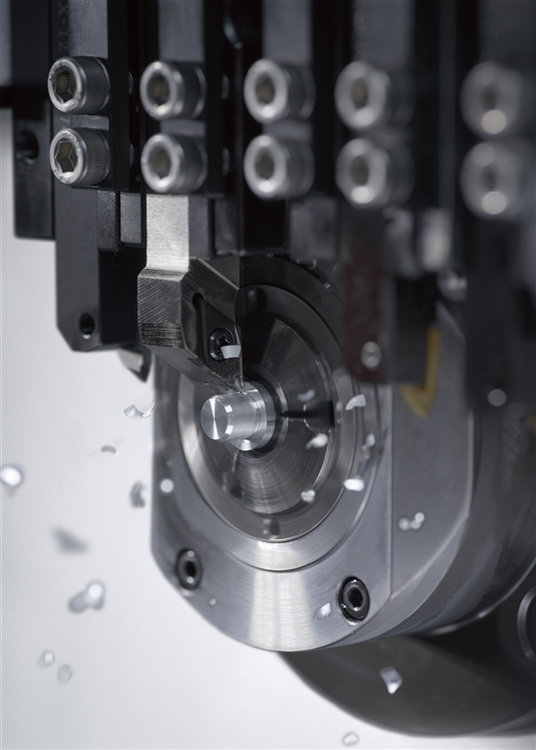

L32（Second generation）
Sliding Headstock Type Automatic CNC Lathe

Cincom
L32（Second generation）

Eco Balance Machine LFV tecnology

Full Model Change for Cincom L32
with Introduction of the L32XIIB5
Capable of Simultaneous 5-Axis Control

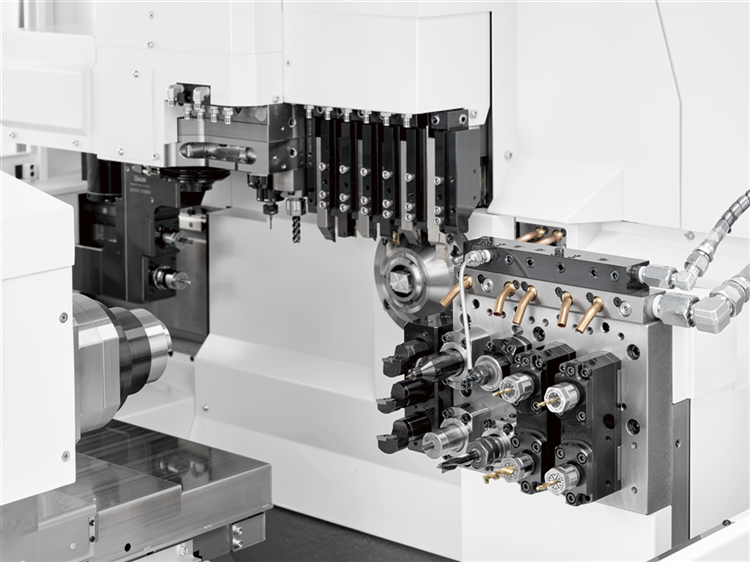

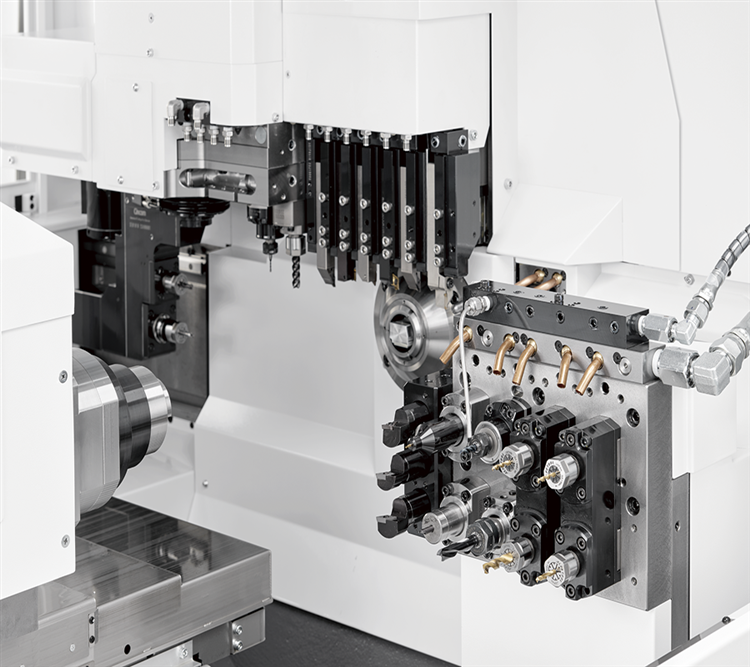

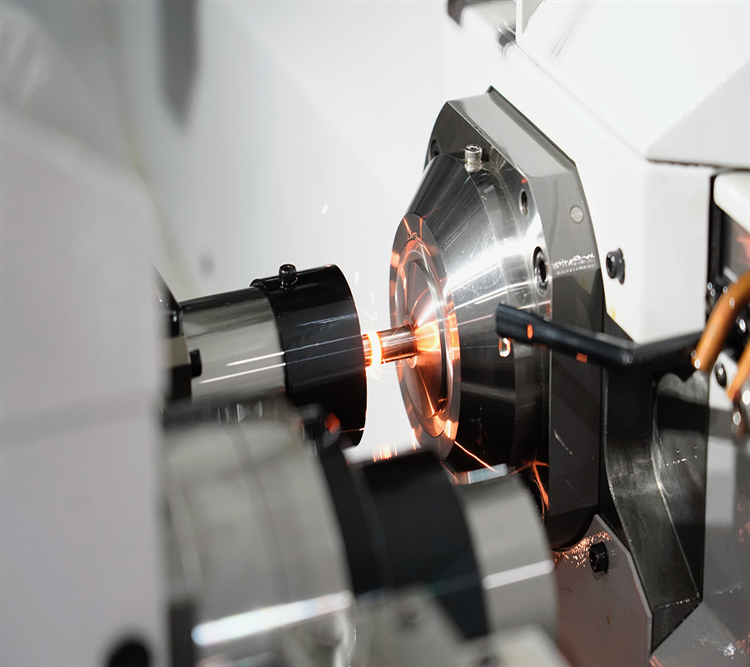

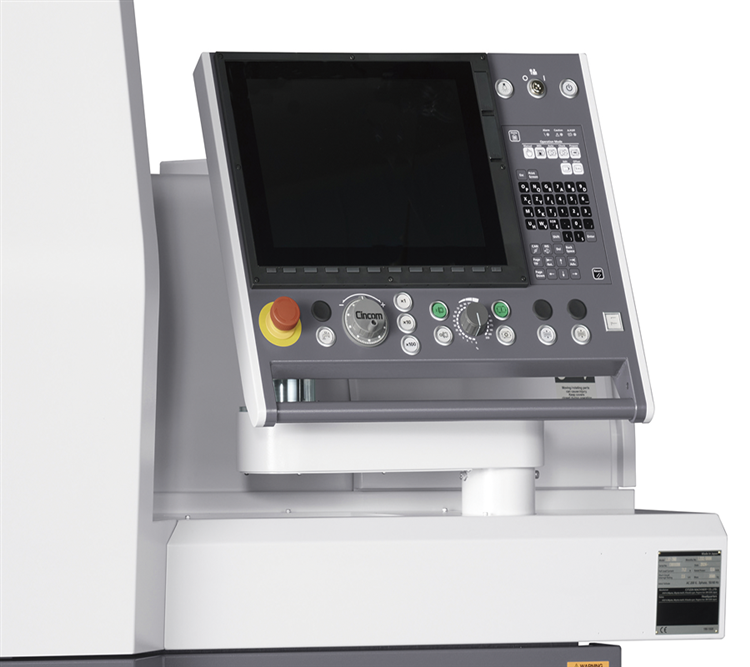

Basic performance and operability are improved, and a variety of optional devices and functions for automation and labor savings can be installed.

  • With the addition of XIIB5, which is capable of simultaneous 5-axis control, more complex workpieces can be machined efficiently using tool paths with a high degree of flexibility involving B-axis machining.

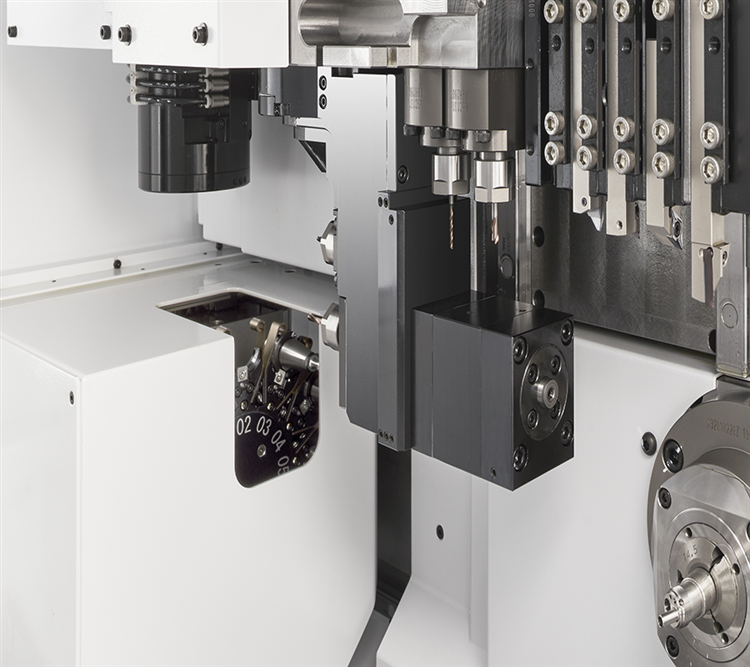

  • In addition, since a loader unit and ATC unit can be installed at the same time, the B axis on the ATC unit can also be used for machining of formed materials.
  • Enabling efficient production of workpieces where the focus is on milling, which have conventionally been handled on a machining center.
Catalog Download

Machine Specifications

Product List
Cincom
[Sliding Headstock Type]
A20
B12/16E
L12 VII
L12 X
L20
L32
L32(Second generation)
D25
M16
M32
R01/04
Miyano
[Bar Work]
BNC42
BNA42CY
BNA42SY
BNA42MSY
BND51
BNA42DHY
BNA42GTY
ANX42SYY
BNJ42/51
BNJ51SY
BNE42/51
BNE51MSY
BNE51/65MYY
ABX65/80THY
[Turning Machine]
LX06/08E
LX08C
LZ01
[High Precision Turning Machines]
RL01
GN3200
GN4200
GN3200W
MC20
[Multi Station Machining Cell]
MC20 III
MC20 IV
Item L32 VIII L32 IX L32 X L32 XII L32 XIIB5
Max. machining diameter 32mm (38mm OP)
Max. machining length GB machine 320mm/chuck
GBL machine 80mm
Max. drilling diameter 12mm
Max. front tapping diameter M12(cutting tap)
Spindle through-hole diameter ø39mm
Spindle speed Max.8,000min-1
Max. chuck diameter of back spindle ø32mm (ø38mm OP)
Max. drilling diameter in back machining ø10mm
Max. tapping diameter in back machining M10(cutting tap)
Back spindle speed Max.8,000min-1
Max. drilling diameter for rotary tool ø10mm
Max. tapping diameter for rotary tool M8(cutting tap)
Rotary tool spindle speed Max.6,000min-1(rated speed:4,500min-1)
Max. drilling diameter for back rotary tool OP ø8mm
Max. tapping diameter for back rotary tool OP M6(cutting tap)
Spindle speed of back rotaty tool OP Max.6,000min-1
Number of mountable tools Max.48 Max.40 Max.53 Max.45
Tool size Turning tool □16mm×130mm(Cut-off,20mm)
Rapid feed rate X1 axis 32m/min
X2 axis 32m/min
Y1 axis 32m/min
Y2 axis - 24m/min
Z1 axis 32m/min
Z2 axis 32m/min
Motors For front spindle drive 5.5/7.5/7.5kW
For driving rotary tools on the gang tool post 1.0kW
For back spindle drive 3.7/5.5kW
For coolant 0.4kW
Rated power consumption 16.9kVA
Load operation average power consumption 10.0kVA
Center height 1,050mm
Weight 3,500kg


ATC (Automatic Tool Changer) L32 XII / L32 XIIB5
ATC tooling maximum spindle speed 12,000 min-1
Motor output 2.2 kW
Tool holder type JBS-15T
B-axis tool storage capacity 12 (magazine)+ 1 (built-in)
Total number of tools mountable on machine 35 tools maximum(B -axis tool sincluded)
Tool change time (chip to chip) 4 sec
Maximum tool outer diameter ø30 mm
Maximum tool gripping diameter ø10 mm (ER16)
L32VIII
Max. machining diameter
32mm (38mm OP)
Max. machining length(GB machine)
320mm/chuck
Max. machining length(GBL machine)
80mm
Max. drilling diameter
12mm
Max. front tapping diameter
M12(cutting tap)
Spindle through-hole diameter
ø39mm
Spindle speed
Max.8,000min-1
Max. chuck diameter of back spindle
ø32mm (ø38mm OP)
Max. drilling diameter in back machining
ø10mm
Max. tapping diameter in back machining
M10(cutting tap)
Back spindle speed
Max.8,000min-1
Max. drilling diameter for rotary tool
ø10mm
Max. tapping diameter for rotary tool
M8(cutting tap)
Rotary tool spindle speed
Max.6,000min-1(rated speed:4,500min-1)
Max. drilling diameter for back rotary tool
OP
Max. tapping diameter for back rotary tool
OP
Spindle speed of back rotaty tool
OP
Number of mountable tools
Max.48
Tool size
□16mm×130mm(Cut-off,20mm)
Rapid feed rate [X1 axis]
32m/min
Rapid feed rate [X2 axis]
32m/min
Rapid feed rate [Y1 axis]
32m/min
Rapid feed rate [Y2 axis]
-
Rapid feed rate [Z1 axis]
32m/min
Rapid feed rate [Z2 axis]
32m/min
Motors For front spindle drive
5.5/7.5/7.5kW
Motors For driving rotary tools on the gang tool post
1.0kW
For back spindle drive
3.7/5.5kW
For coolant
0.4kW
Rated power consumption
16.9kVA
Load operation average power consumption
10.0kVA
Center height
1,050mm
Weight
3,500kg
L32IX
Max. machining diameter
32mm (38mm OP)
Max. machining length(GB machine)
320mm/chuck
Max. machining length(GBL machine)
80mm
Max. drilling diameter
12mm
Max. front tapping diameter
M12(cutting tap)
Spindle through-hole diameter
ø39mm
Spindle speed
Max.8,000min-1
Max. chuck diameter of back spindle
ø32mm (ø38mm OP)
Max. drilling diameter in back machining
ø10mm
Max. tapping diameter in back machining
M10(cutting tap)
Back spindle speed
Max.8,000min-1
Max. drilling diameter for rotary tool
ø10mm
Max. tapping diameter for rotary tool
M8(cutting tap)
Rotary tool spindle speed
Max.6,000min-1(rated speed:4,500min-1)
Max. drilling diameter for back rotary tool
OP
Max. tapping diameter for back rotary tool
OP
Spindle speed of back rotaty tool
OP
Number of mountable tools
Max.40
Tool size
□16mm×130mm(Cut-off,20mm)
Rapid feed rate [X1 axis]
32m/min
Rapid feed rate [X2 axis]
32m/min
Rapid feed rate [Y1 axis]
32m/min
Rapid feed rate [Y2 axis]
-
Rapid feed rate [Z1 axis]
32m/min
Rapid feed rate [Z2 axis]
32m/min
Motors For front spindle drive
5.5/7.5/7.5kW
Motors For driving rotary tools on the gang tool post
1.0kW
For back spindle drive
3.7/5.5kW
For coolant
0.4kW
Rated power consumption
16.9kVA
Load operation average power consumption
10.0kVA
Center height
1,050mm
Weight
3,500kg
L32X
Max. machining diameter
32mm (38mm OP)
Max. machining length(GB machine)
320mm/chuck
Max. machining length(GBL machine)
80mm
Max. drilling diameter
12mm
Max. front tapping diameter
M12(cutting tap)
Spindle through-hole diameter
ø39mm
Spindle speed
Max.8,000min-1
Max. chuck diameter of back spindle
ø32mm (ø38mm OP)
Max. drilling diameter in back machining
ø10mm
Max. tapping diameter in back machining
M10(cutting tap)
Back spindle speed
Max.8,000min-1
Max. drilling diameter for rotary tool
ø10mm
Max. tapping diameter for rotary tool
M8(cutting tap)
Rotary tool spindle speed
Max.6,000min-1(rated speed:4,500min-1)
Max. drilling diameter for back rotary tool
ø8mm
Max. tapping diameter for back rotary tool
M6(cutting tap)
Spindle speed of back rotaty tool
Max.6,000min-1
Number of mountable tools
Max.53
Tool size
□16mm×130mm(Cut-off,20mm)
Rapid feed rate [X1 axis]
32m/min
Rapid feed rate [X2 axis]
32m/min
Rapid feed rate [Y1 axis]
32m/min
Rapid feed rate [Y2 axis]
24m/min
Rapid feed rate [Z1 axis]
32m/min
Rapid feed rate [Z2 axis]
32m/min
Motors For front spindle drive
5.5/7.5/7.5kW
Motors For driving rotary tools on the gang tool post
1.0kW
For back spindle drive
3.7/5.5kW
For coolant
0.4kW
Rated power consumption
16.9kVA
Load operation average power consumption
10.0kVA
Center height
1,050mm
Weight
3,500kg
L32XII
Max. machining diameter
32mm (38mm OP)
Max. machining length(GB machine)
320mm/chuck
Max. machining length(GBL machine)
80mm
Max. drilling diameter
12mm
Max. front tapping diameter
M12(cutting tap)
Spindle through-hole diameter
ø39mm
Spindle speed
Max.8,000min-1
Max. chuck diameter of back spindle
ø32mm (ø38mm OP)
Max. drilling diameter in back machining
ø10mm
Max. tapping diameter in back machining
M10(cutting tap)
Back spindle speed
Max.8,000min-1
Max. drilling diameter for rotary tool
ø10mm
Max. tapping diameter for rotary tool
M8(cutting tap)
Rotary tool spindle speed
Max.6,000min-1(rated speed:4,500min-1)
Max. drilling diameter for back rotary tool
ø8mm
Max. tapping diameter for back rotary tool
M6(cutting tap)
Spindle speed of back rotaty tool
Max.6,000min-1
Number of mountable tools
Max.45
Tool size
□16mm×130mm(Cut-off,20mm)
Rapid feed rate [X1 axis]
32m/min
Rapid feed rate [X2 axis]
32m/min
Rapid feed rate [Y1 axis]
32m/min
Rapid feed rate [Y2 axis]
24m/min
Rapid feed rate [Z1 axis]
32m/min
Rapid feed rate [Z2 axis]
32m/min
Motors For front spindle drive
5.5/7.5/7.5kW
Motors For driving rotary tools on the gang tool post
1.0kW
For back spindle drive
3.7/5.5kW
For coolant
0.4kW
Rated power consumption
16.9kVA
Load operation average power consumption
10.0kVA
Center height
1,050mm
Weight
3,500kg
L32XIIB5
Max. machining diameter
32mm (38mm OP)
Max. machining length(GB machine)
320mm/chuck
Max. machining length(GBL machine)
80mm
Max. drilling diameter
12mm
Max. front tapping diameter
M12(cutting tap)
Spindle through-hole diameter
ø39mm
Spindle speed
Max.8,000min-1
Max. chuck diameter of back spindle
ø32mm (ø38mm OP)
Max. drilling diameter in back machining
ø10mm
Max. tapping diameter in back machining
M10(cutting tap)
Back spindle speed
Max.8,000min-1
Max. drilling diameter for rotary tool
ø10mm
Max. tapping diameter for rotary tool
M8(cutting tap)
Rotary tool spindle speed
Max.6,000min-1(rated speed:4,500min-1)
Max. drilling diameter for back rotary tool
ø8mm
Max. tapping diameter for back rotary tool
M6(cutting tap)
Spindle speed of back rotaty tool
Max.6,000min-1
Number of mountable tools
Max.45
Tool size
□16mm×130mm(Cut-off,20mm)
Rapid feed rate [X1 axis]
32m/min
Rapid feed rate [X2 axis]
32m/min
Rapid feed rate [Y1 axis]
32m/min
Rapid feed rate [Y2 axis]
24m/min
Rapid feed rate [Z1 axis]
32m/min
Rapid feed rate [Z2 axis]
32m/min
Motors For front spindle drive
5.5/7.5/7.5kW
Motors For driving rotary tools on the gang tool post
1.0kW
For back spindle drive
3.7/5.5kW
For coolant
0.4kW
Rated power consumption
16.9kVA
Load operation average power consumption
10.0kVA
Center height
1,050mm
Weight
3,500kg
